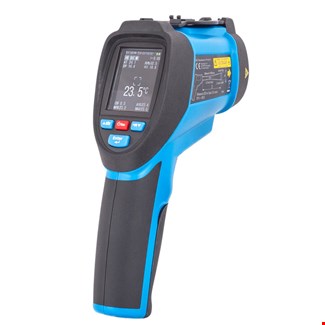

SKF infrarood thermometer - TKTL 40 - –50 to +1 000 °C

SKF infrarood thermometer - TKTL 40 - –50 to +1000 °C - opslag jpeg/MP4

SKF offers a wide range of portable, lightweight and easy-to-use infrared thermometers for thermal inspections. These portable tools help you to detect temperature differences in technical and non-technical applications in order to perceive information on abnormalities in operating. For example helping to prevent high costs of losses in equipment, prevent unplanned stops and to meet food safety requirements.

SKF Infrared Thermometers are fitted with multiple lasers which helps you to easy and more accurate target the object.

Product highlights:

• LCD colour display
• 640 x 480 pixels digital camera
• Internal memory expandable to 8GB (Micro SD card)
• Image (JPEG) and video (MP4)
• Humidity and Air Temperature
• Dual laser targeting
• Type-K thermocouple probe TMDT 2-30
• Adjustable emissivity
• High accuracy
• Fast response time
• Dewpoint temperature and Wet bulb temperature
• Can be used with any other SKF temperature probe
• User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display
• User selectable high and low alarm levels with audible warning signal
• User selectable auto shut off feature optimises the rechargeable battery life
• Temperature range using infrared: –50 to +1 000 °C (–58 to +1 832 °F)
• Temperature range using probe: –50 to +1 370 °C (–58 to +2 498 °F)
• Distance to spot size: 50:1
• Emissivity pre-set: 0,1–1,0
• Supplied in a sturdy carrying case

Technical data:

• Temperature range using infrared: –50 to +1 000 °C (–58 to +1 832 °F)
• Temperature range using probe: –50 to +1 370 °C (–58 to +2 498 °F)
• Probe supplied: TMDT 2-30 included max. 900 °C (1650 °F)
• Distance-to-spot ratio: 50:1
• Emissivity: 0,1-1,0
• Measurement accuracy: ±1% of reading or 1 °C (1.8 °F) whichever is greater
• Operating temperature: 0 to +50 °C (32 to +122 °F) 10 to 95% R.H.
• Storage –10 to +60 °C: (14 to +150 °F) 10 to 95% R.H.
• Respons time msec: <300
• Displayed resolution: 0.1 °C/F (below 999.9); 1 °C/F (above 1000)
• Display: Colour backlit LCD
• Spectral response: 8–14 µm
• Measurement modes: Maximum; Minimum; Average; Difference (between min and max); Probe/IR dual temperature
• Alarm modes: High and low level alarm with warning sound
• Laser: 2x red targeting laser dots, Class 2
• Operating time: Min. 4 hours continuous use
• Auto switch off: Automatic, user selectable
• HVAC functions: Wet bulb; Dew point; Humidity; Air temperature
• Photo and video: 640x480 px visual camera, images (JPEG) and video (3GP)
• Memory: 310 MB internal memory; expandable with micro SD card (8 GB max.)
• PC connection: Mini USB port, mini USB to USB cable included

Contents:

• 1x IR thermometer (TKTL 40);
• 1x Temperature probe (TMDT 2-30);
• 1x AC battery charger;
• 1x Mini USB to USB connection cable
• 1x Mini tripod
• 1x Instructions for use;
• 1x Carrying case
